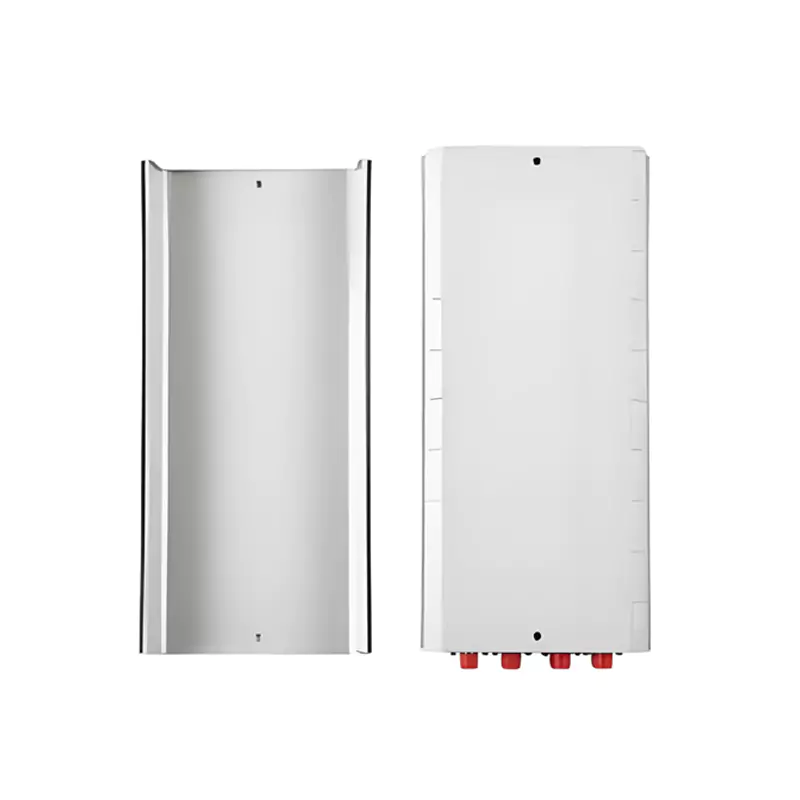

Book-Type Optical Cable Termination Box
Book-Type Optical Cable Termination Box

Book-Type Optical Cable Termination Box

Optical cable termination box series products are auxiliary equipment for terminal distribution in optical fiber transmission communication networks. They are suitable for direct and branch splicing of indoor or outdoor optical cables and protect fiber optic connectors. The optical cable termination box is mainly used for fixing the optical cable terminal, fusion-splicing the optical cable with pigtails, and accommodating and protecting the excess fiber.
Online Phone：18721624519

Features

01

Suitable for termination splicing and distribution of single-core and ribbon optical fibers;

02

Adopts an original optical cable introduction and fixing structure, featuring simple operation, and can be installed indoors or on the wall of equipment rooms;

03

Used for splicing and distribution between indoor/outdoor optical cables and pigtails of switching equipment;

04

Capable of installing SC and FC adapters as well as pigtails, with a maximum distribution capacity of 12 cores;

05

Can meet the termination splicing needs of Φ8～18 optical cables;

Parameters

Box Material ABS Overall Dimensions (mm) 285×130×50
Fiber Tray Capacity 12 Cores Weight (kg)
Standard Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 Box Body Set 1 6 Fusion Splicing Protection Tube Piece 24
2 Nylon Cable Tie Piece 4 7 Optical Cable Fixing Device Set 1
3 Self-tapping Screw Piece 4 8 Rubber Dust Ring Set 2
4 Plastic Expansion Tube Piece 4 9   Piece
5 Fiber Tray (Including Cover Plate) Sheet 2 10   Set
Optional Accessories
Serial No. Name Unit Quantity Serial No. Name Unit Quantity
1 SC Pigtail Strip As Required 3 Adapter Piece As Required
2 FC Pigtail Strip As Required 4 Adapter Fixing Plate Sheet 1
