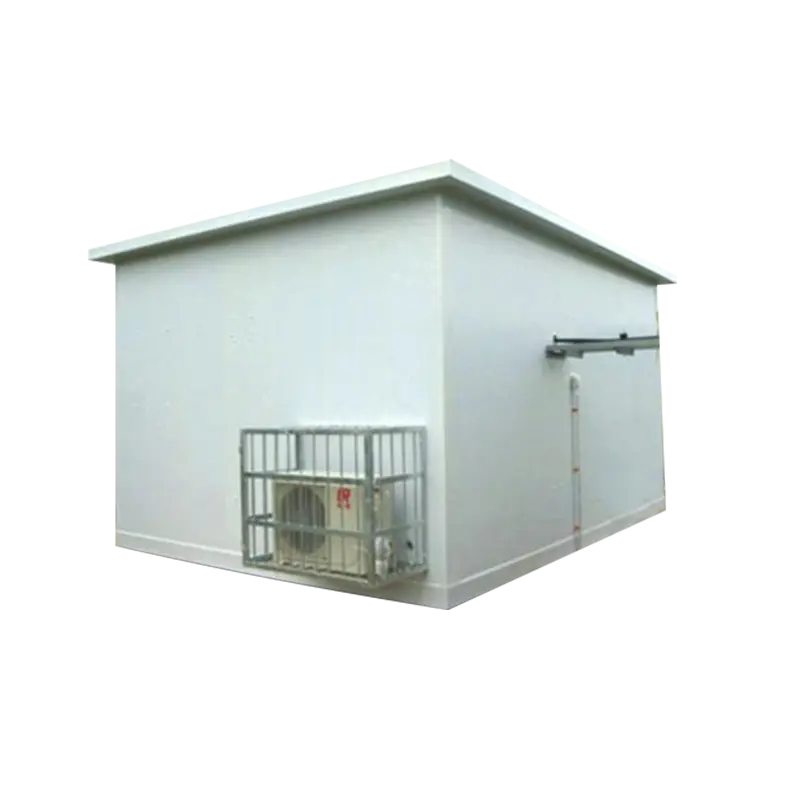

Convergence Equipment Shelter

Convergence equipment room is a room where access equipment convergence is installed, connecting to the upper core equipment room and the lower access equipment room. It is generally used for installing convergence switches, dedicated line convergence equipment, OTN, 5G edge node equipment, etc. The equipment room is mainly constructed with color steel plate material structure, has excellent thermal insulation performance, is applied in communication systems, directly exposed to outdoor climate conditions, and provides mechanical and environmental protection for internal communication equipment. It is characterized by being producible in factories, easy to transport and on-site install, allowing authorized personnel to enter for operation. It is an integrated cabinet that can integrate main equipment, system power supply, AC/DC power distribution, environmental monitoring, heat dissipation equipment, batteries, and lightning protection and grounding, and provides outdoor working environment and safety management for base stations. It is mainly applied to various outdoor scenarios such as rooftops, streets, mountainous areas, railway lines, and high/low temperature environments, meeting customers' needs in energy conservation and emission reduction, rapid deployment, and multi-scenario adaptation.

Online Phone：18721624519

Features Parameters Related Products

Features

The house body adopts a metal frame structure, with color steel plate insulation materials used as wall panels for the four sides and the top.

Color steel material: Sandwich structure, consisting of inner and outer steel plates (0.5~0.8mm thick) and a middle 50~100mm sandwich insulation layer. Thermal insulation materials (EPS or PU optional).

The equipment room is available in two types: five-sided (without a bottom) and six-sided (four sides + top and bottom).

It features an outdoor equipment room anti-theft door structure with strong anti-theft performance. The screws of the equipment room are arranged inside the cabinet, invisible from the outside, to prevent unauthorized disassembly.

Surface treatment: Degreasing, pickling, anti-rust phosphating, and electrostatic spraying. Outdoor cabinets are sprayed with imported outdoor powder and baked, with the coating meeting the requirements specified in GB/T 3181-2008.

After the coating adhesion test, the adhesion of the cabinet surface coating shall meet the Class 1 requirement in GB/T 9286-1998.

The lockset shall have vandalism resistance complying with the Class B requirement of GA/T 73-1994. The lightning protection design of the outdoor integrated equipment cabinet shall conform to YD 5098-2005 "Code for Design of Lightning Protection and Grounding Engineering of Communication Bureau (Station)".

The following components can be configured in the equipment room as required: communication equipment racks, power supply racks, ODF racks, cable trays, distribution boxes, feeder windows, monitoring units, battery racks, etc. The cabinet protection level reaches IP55 or higher.

Parameters

Serial No.	Equipment Name	Specification	Quantity	Remarks
1	Main Body of Equipment Shelter (Inner 0.5mm, Outer 0.8mm, Thickness 75mm)	4.62.82.5 meters	1 set	Specifications can be customized according to requirements Material specifications are optional
2	Door	Class A Anti-theft Door	3 sets
3	Feeder Window/Incoming Cable Hole	9-hole	2 sets	Specifications can be customized according to requirements
4	Indoor Equipment Rack	2000600600mm	1 set	Specifications can be customized according to requirements
5	AC Distribution Box	380V	1 rack	Specifications can be customized according to requirements
6	Combined Switching Power Supply	300~600A	1 rack	Specifications can be customized according to requirements
7	Battery Pack (Including Battery Rack)	1~2 sets (500AH)	1 set	Specifications can be customized according to requirements
8	Circuit System	1 set	1 set	Standard configuration (configurable according to requirements)
9	Lighting System	1 set	1 set	Standard configuration (configurable according to requirements)
10	Power and Environment Monitoring	1 set	1 set	Specifications can be customized according to requirements
11	Air Conditioner (Including Anti-theft Net for Outdoor Unit)	1P~3P Wall-mounted	1 unit	Specifications can be customized according to requirements
12	Fire-fighting Equipment	2~4L	1 set	Optional
13	Ground Bar	2 pieces	2 pieces	Optional
